CEM04

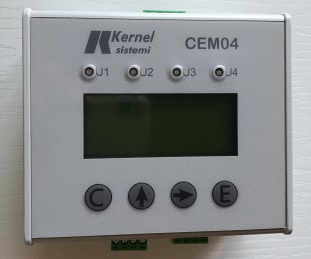

CEM04 is a smart energy meter that controls and measure the energy consumed up to four independent users, logging the data for billing.
It can be connected in a network of meters allowing the complete management of electrical supply of small villages. The network can be managed by a PLC or a PC than can select the production of energy, choosing among different sources, renewables or traditional and monitoring the plant efficency by both local or remote tools.

MAIN FEATURES :
- Display LCD alphanumeric 16x4
- Wide power supply range: 160..250 Vac
- Up to 1 KW per user power control
- One global AC power input an four AC power
- Outputs, rele' controlled (one per user)
- User friendly HMI with wide display and four keys
- Two RS485 ports for network connection
- 64 Kbyte memory for data logger
