DP 364

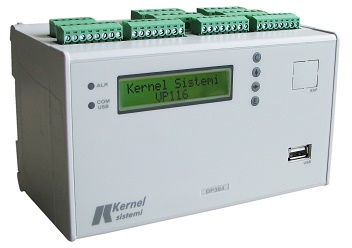

The DP 364 is a Kernel PLC for din bar connecting with monochromatic alphanumeric display [16 characters per 2 lines with a LED backlight]. Small and compact it is indicated for the management of any type of automation, also available with analog inputs for PT100 temperature sensor, J or K thermocouple, voltage or current. The DP 364 is completed from 3 configurable serial ports and an optional Ethernet port.

MAIN FEATURES :

Datasheet
DP 364R
Datasheet
DP 364S

DP 364 R
Digital Inputs
28 digital inputs PNP 24 Volts including 4 fast
(until 20 KHz for encoder reading) with
programmable anti-noise filter (value 1..16)
Analog Inputs
8 analog inputs with 12 bits resolution [0 … 4095] ; for PT100, PT1000, thermocouple
(J or K) otherwise voltage (0 … 10 V)
or current (0 … 20 mA)
Digital Outputs
24 relè outputs 24 Vdc
Analog Outputs
4 analog outputs 0 … 10 V
with 12 bit resolution [0 … 4095]
DP 364 S
Digital Inputs
28 digital inputs PNP 24 Volts including 4 fast
(until 20 KHz for encoder reading) with
programmable anti-noise filter (value 1..16)
Analog Inputs
8 analog inputs with 12 bits resolution [0 … 4095] ; for PT100, PT1000, thermocouple
(J or K) otherwise voltage (0 … 10 V)
or current (0 … 20 mA)
Digital Outputs
20 static outputs 24 Vdc 500 mA
+ 4 relè outputs 24 Vdc
Analog Outputs
4 analog outputs 0 … 10 V
with 12 bit resolution [0 … 4095]
Request
More
Information




Programmable with
LogicPaint
